• Hi-Res audio (96 kHz/24-bit native resolution) for unparalled audio quality
• Built-in USS technology (Universal Speakers Simulator), S8 DSP can also be correctly connected to head units with “speaker load detection” function that monitors the presence of a low-impedance load to enable the audio outputs
• Upload a setup file via BT through the Bluetooth 5.0* APP when in “Configurator” or “DRC” mode
• Configurable via PC, Mac, Android, or iOS devices
• Compact size featuring all connections on one side
• S8 DSP features a sturdy enclosure with an anti-corrosion-treated PCB

<style> @media only screen and (max-width: 1023px) { .block.upsell, .block.crosssell { display: none; } .ten { width: 15%; } } @media only screen and (min-width: 1024px) { .half td { width: 50%; } } .page-header, .product-image-wrapper, .navigation { z-index: 0; } .navigation:hover { z-index: 3; } .page-header:hover { z-index: 3; } .modalDialog { position: fixed; font-family: Arial, Helvetica, sans-serif; top: 0; right: 0; bottom: 0; left: 0; background: rgba(0, 0, 0, 0.8); z-index: 999; display: none; -webkit-transition: opacity 400ms ease-in; -moz-transition: opacity 400ms ease-in; transition: opacity 400ms ease-in; pointer-events: none; overflow-y: initial; } .modalDialog:target { display: block; pointer-events: auto; } .modalDialog>div { width: 100%; max-width: 1024px; height: 85%; position: relative; margin: 2% auto; padding: 0px; border-radius: 10px; background: #fff; background: -moz-linear-gradient(#fff, #999); background: -webkit-linear-gradient(#fff, #999); background: White; } .stop-button { background: #909090; color: #FFFFFF; line-height: 30px; font-size: 25px; position: absolute; right: 5px; text-align: center; top: 5px; width: 30px; text-decoration: none; font-weight: bold; -webkit-border-radius: 12px; -moz-border-radius: 12px; border-radius: 15px; -moz-box-shadow: 1px 1px 3px #000; -webkit-box-shadow: 1px 1px 3px #000; box-shadow: 1px 1px 3px #000; } .stop-button:hover { background: red; text-decoration: none; } #compatibility { border-collapse: collapse; width: 100%; } #compatibility td, #customers th { border: 1px solid #ddd; padding: 8px; } #compatibility tr:nth-child(even) { background-color: #f2f2f2; } #compatibility tr:hover { background-color: #ddd; } #compatibility th { padding-top: 12px; padding-bottom: 12px; text-align: left; background-color: #204387; color: white; } #compatibility li { font-weight: normal; } .modal-header { height: fit-content; padding: 1px; } .modal-title { text-align: center; } .modal-footer { height: fit-content; font-size: 1.2rem; background: #fff; border-radius: 10px; padding: 3px 3px 0 3px; } .modal-body { overflow-y: scroll; max-height: 90%; padding: 5px; } </style> <div id=”links”> <a class=”pagebuilder-button-primary” href=”#openModal” style=”text-align: center; font-weight: normal;”> <i class=”fas fa-wrench”></i> <span data-element=”link_text” style=”font-weight: 600;”> Specification</span> </a> <a class=”pagebuilder-button-primary” href=”https://static.hertz-audio.com/media/2022/04/HERTZ_Scheda-S8DSP_22B.pdf” target=”_blank” style=”text-align: center; font-weight: normal;”> <i class=”fas fa-file-alt”></i> <span data-element=”link_text” style=”font-weight: 600;”> Datasheet</span> </a> </div> <div id=”openModal” class=”modalDialog”> <div> <div class=”modal-header”> <h3 class=”modal-title”>Technical Specifications</h3> <a class=”stop-button” title=”Close” href=”#close” onclick=”go()”>X</a> </div> <div class=”modal-body”> <table class=”half” id=”compatibility”> <thead> <tr> <th colspan=”2″><strong>General</strong></th> </tr> </thead> <tbody> <tr> <td>Nominal Power supply voltage / fuse:</td> <td>7 – 20 VDC / 1A</td> </tr> <tr> <td>Pulse operating voltage:</td> <td>5 – 24 VDC</td> </tr> <tr> <td>Idling current:</td> <td>0.34 A</td> </tr> <tr> <td>OFF current (ART= OFF):</td> <td><80 uA</td> </tr> <tr> <td>OFF current (ART= ON):</td> <td><80 uA</td> </tr> <tr> <td>Remote IN</td> <td>6 – 20 VDC (10 mA)</td> </tr> <tr> <td>Remote OUT</td> <td>4 – 20 VDC (150 mA)</td> </tr> <tr> <td>ART – Automatic Remote Turn on/off from BTL speaker outputs (selectable):</td> <td>1.5 – 7 VDC</td> </tr> <tr> <td>Max size W x H x D (mm/inch)</td> <td>130 x 33.8 x 88,3 / 5.11 x 1.44 x 3.47</td> </tr> <tr> <td>Weight (kg/lbs)</td> <td>0.66 / 1.45</td> </tr> </tbody> </table> <br> <table class=”half” id=”compatibility”> <thead> <tr> <th colspan=”2″><strong>Input Stage</strong></th> </tr> </thead> <tbody> <tr> <td>Analog low level Inputs</td> <td>6 ch. (Differential input) (Molex microfit to RCAs)</td> </tr> <tr> <td>Analog high level Inputs</td> <td>6 ch. (Differential input) (Molex microfit to tripped ends) + USS (Universal Speakers Simulator)</td> </tr> <tr> <td>Digital inputs</td> <td>Yes (Coaxial SPDIF; up to 24bit 96KHz) (Molex microfit to RCA)</td> </tr> <tr> <td>Input sensitivity (low level)</td> <td>0.8V – 6V RMS</td> </tr> <tr> <td>Input sensitivity (high level)</td> <td>2.5V – 21V RMS</td> </tr> <tr> <td>Analog inputs management</td> <td>Audio input routing matrix type</td> </tr> <tr> <td>Analog inputs eq</td> <td>7 bands paragraphic for each input channel</td> </tr> <tr> <td>ART</td> <td>Automatic Remote Turn-On/Off with Speaker-In</td> </tr> </tbody> </table> <br> <table class=”half” id=”compatibility”> <thead> <tr> <th colspan=”2″><strong>Output Stage</strong></th> </tr> </thead> <tbody> <tr> <td>Analog outputs (rca)</td> <td>8 channels</td> </tr> <tr> <td>Max output level (rms) @ 0.05% THD</td> <td>4V</td> </tr> <tr> <td>95dBA Analog outputs management</td> <td>The DSP controls each output channel: gain, crossover, EQ, delay, polarity</td> </tr> <tr> <td>Bandwidth</td> <td>10Hz – 40KHz (+/-3db)</td> </tr> <tr> <td>Signal to noise ratio (A weighted)</td> <td>105dBA (Analog Input) 112dBA (Digital Input)</td> </tr> <tr> <td>THD+N (@ 1Vrms out, @ 1Khz)</td> <td><0.005%</td> </tr> <tr> <td>Crosstalk (channel separation) @ 1KHz</td> <td>>95dBA</td> </tr> </tbody> </table> <br> <table class=”half” id=”compatibility”> <thead> <tr> <th colspan=”2″><strong>Digital Signal Processor</strong></th> </tr> </thead> <tbody> <tr> <td>Sample rate</td> <td>96KHz</td> </tr> <tr> <td>Bit depth</td> <td>24</td> </tr> <tr> <td>Output equalizer</td> <td>15 bands per channel w/ adjustable Q and Frequency</td> </tr> <tr> <td>Equalizer resolution</td> <td>1/10th dB per step +12dB / -12dB</td> </tr> <tr> <td>Time alignment (distance)</td> <td>0 – 468.4 cm / 0 – 184.4 inches</td> </tr> <tr> <td>Time alignment (time)</td> <td>0 – 13.5ms</td> </tr> <tr> <td>Time alignment (step)</td> <td>0.08 ms; 2.8 cm / 1.1 inch</td> </tr> <tr> <td>Time alignment (fine set)</td> <td>0.02 ms; 0.7 cm / 0.27 inch</td> </tr> <tr> <td>Crossovers</td> <td>AP/HP/LP/BP all channels</td> </tr> <tr> <td>Crossover type</td> <td>Butterworth, Linkwitz-Riley, Bessel (All Channels)</td> </tr> <tr> <td>Crossover slope</td> <td>From 6dB/oct. until 30dB/oct. (6dB step)</td> </tr> <tr> <td>Crossover steps</td> <td>120 steps 20Hz-20KHz</td> </tr> <tr> <td>Mute function</td> <td>I can mute every channel separately or all together.</td> </tr> <tr> <td>Presets</td> <td>4 presets</td> </tr> <tr> <td>Presets selection</td> <td>2 specific wires to control the 4 presets selection by extarnal switches.</td> </tr> <tr> <td>Input selection by wire</td> <td>One specific wire to select the desired input between Analog or Digital.</td> </tr> <tr> <td>Audio signal compressor on output stage</td> <td>Yes (enable/disable)</td> </tr> <tr> <td>DSP chipset</td> <td>Analog Device: ADAU1451</td> </tr> <tr> <td>DSP management by bt app (iOS/ Android)</td> <td><ol> <li>CONFIGURATOR mode Mainly it’ll allow the DSP tuning. You can manage every DSP functon through your smartphone/ tablet/PC/MAC.</li> <li>DRC mode The BT device becomes a remote control by using the dedicated app with a simple graphical user interface. Manage volume level, SUB level, select different setup files, upload a new setup file.</li> </ol></td> </tr> <tr> <td>Setup file sharing via BT</td> <td>Upload a setup file via BT through the BT APP when in “Configurator” or “DRC” mode.</td> </tr> <tr> <td>DSP management by pc / mac / ios / android</td> <td>Microsoft Windows (32/64 bit): Windows 10 (USB and BT BLE) Windows 11 (USB and BT BLE) Mac Os: 10.13 Hight Sierra or later (USB and BT BLE)</td> </tr> </tbody> </table> </div> </div> </div>

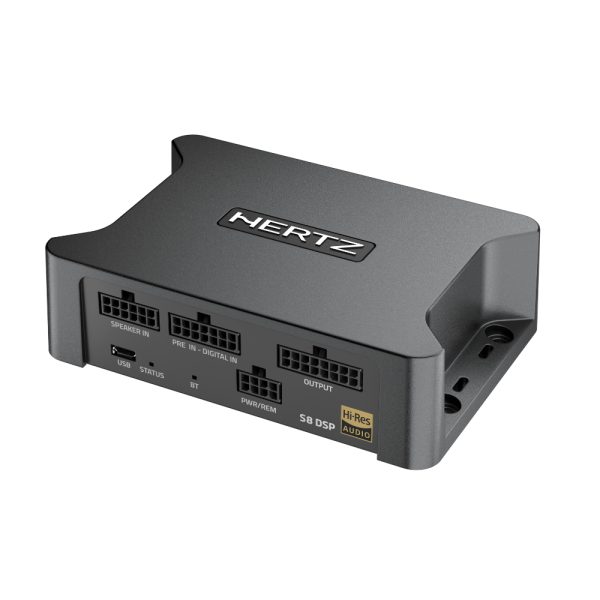

The ultra-compact S8 DSP is the perfect solution for integrating any OEM source into any audio upgrade project for cars, motorcycles, and boats! S8 DSP is a distilled essence of technology at the service of the highest audio quality in a corrosion-free case cast in metal and composite materials.

S8 DSP processes the audio signal with 96 kHz / 24-bit resolution and has obtained the Hi-Res certification from the JAS (Japan Audio Society), an acknowledgment that certifies the extreme level of audio performance achieved.

The powerful 32-bit DSP manages 6 high/low-level analog input channels, one digital coaxial input, and 8 output channels, offering maximum freedom of configuration to the specialist. The SPDIF coaxial input is ideal for digital connection with a Hi-Res player, a solution that allows for maximum listening quality. For each of the eight output channels we have a level control, the 15-pole parametric equalizer, time delays, and crossover filter available. The 7-band parametric equalizer of the input signal allows obtaining a flat response from OEM sources, which often have an exaggerated emphasis on the low frequency.

Technologies

Hi-Res Audio – Hi-Res audio (96 kHz/24-bit native resolution) for unparalled audio quality.

USS (Universal Speakers Simulator) – Thanks to the built-in USS technology , S8 DSP can also be correctly connected to head units with “speaker load detection” function that monitors the presence of a low-impedance load to enable the audio outputs.

Bluetooth 5.0 – Upload a setup file via BT through the Bluetooth 5.0* APP when in “Configurator” or “DRC” mode. *Music streaming not supported.

App Control – Configurable with a PC, a Mac, an Android device, or an iOS device. iOS/ Android control APPs (Bluetooth 5.0), DRC control over app from iOS/Android devices.

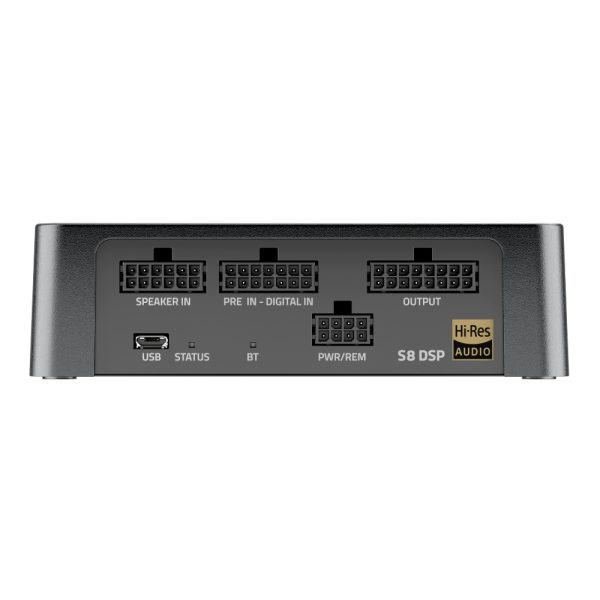

Ultra Compact – Compact size featuring all connections on one side to be installed anywhere.

Conformal Coating PCB – S8 DSP features a sturdy enclosure with an anti-corrosion-treated PCB to ensure years of listening pleasure in open nature.
