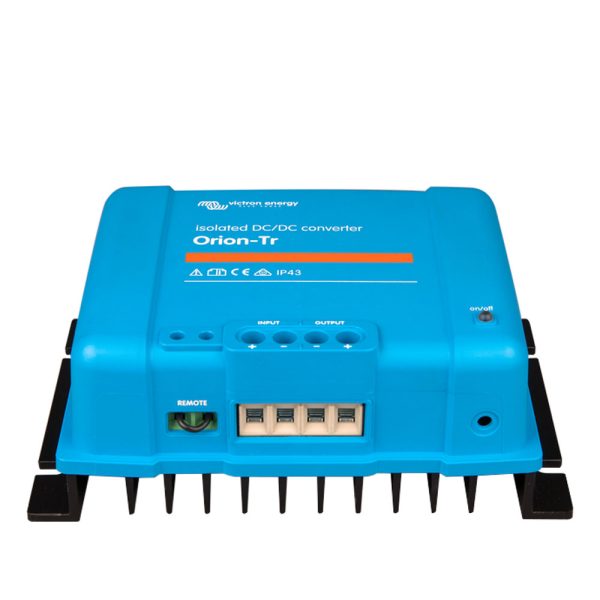

Victron Orion-Tr DC-DC Converter-Isolated 12/12-18A (220W)
£132.00
Input voltage range: 8-17 V.
Under voltage shut down / restart: 7V / 7.5 V.
Nominal output voltage: 12,2 V.
Output voltage adjust range: 10-15 V.
Output voltage tolerance: +/- 0,2 V.
Output noise: 2 mV rms.
Cont. output current at nominal output voltage and 40°C: 18 A.
Maximum output current (10 s) at nominal output voltage: 25 A.
Short circuit output current: 40 A.
Cont. output power at 25°C / 40°C: 280 W / 220 W.
1 in stock
Description
Description
Orion-Tr DC-DC converters isolated: 100 Watt series.
Remote on-off – The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch (see manual).
Adjustable output voltage: can also be used as a battery charger – For example to charge a 12 Volt starter or accessory battery in an otherwise 24 V system.
All models are short circuit proof and can be paralleled to increase output current – An unlimited number of units can be connected in parallel.
IP43 protection – When installed with the screw terminals oriented downwards.
Screw terminals – No special tools needed for installation.
Input fuse – On 12V and 24V input models only.
Galvanic isolation: 200 V dc between input, output and case.
Operating temperature range: -20 to +55°C (derate 3% per °C above 40°C).
Humidity: Max. 95% non condensing.
DC connection: Screw terminals.
Maximum cable cross-section: 13 mm² AWG6.
Dimensions (HxWxD) / Weight: 130 x 186 x 70 mm / 1.3 kg.
Standards:.
Safety: EN 60950.
Emission: EN 61000-6-3, EN 55014-1.
Immunity: EN 61000-6-2, EN 61000-6-1, EN 55014-2.
Automotive Directive: EN 50498.
