Description

• Converts NMEA 2000 to/from NMEA 0183 (streamed over Wi-Fi)
• Supports both TCP and UDP streams data using up to three separate data servers
• Data protocols are selectable to be compatible with a huge range of navigation software and apps
• Voyage data recording (install SD card up to 128GB)
• Diagnostic LEDs for NMEA 2000 bus activity and Wi-Fi Status
• Works as an access point and client simultaneously
• Remote Firmware upgradability
• Low power- 2 LEN (100 mA)
• Supports 802.11 b/g/h (up to 150Mbps)
• Automatically measures and reports the NMEA 2000 bus voltage
• Each device has unique default SSID and Password for enhanced security
• Actisense-i diagnostic tools

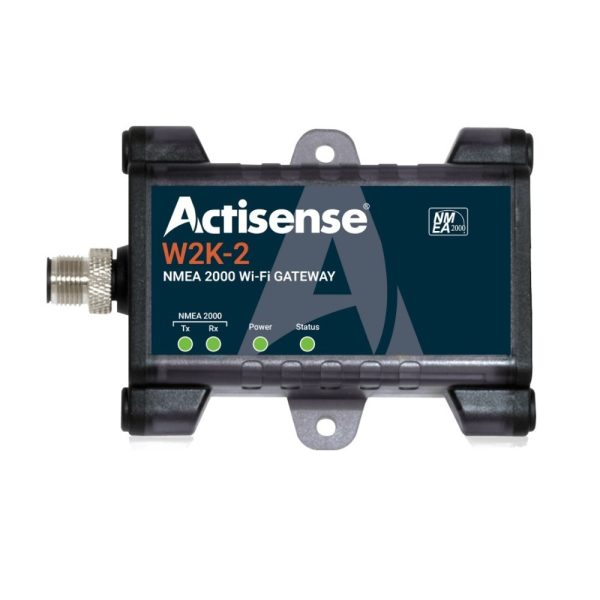

The W2K-2 has built-in conversion of NMEA 2000 messages into NMEA 0183 sentences thus allowing a wide variety of vessel data (e.g. position speed course wind speed depth engine data AIS messages etc.) to be shared with NMEA 0183 compatible software applications running on connected devices.

All the data received (or a selected subset) can be logged to an internal micro SD card for later downloading to use for analysing the voyage. This is very useful for analysing race data generating logbooks diagnosing problems or even sharing your voyage details. Data can be stored on any micro SD card (up to 128GB)  giving weeks or more of storage of all onboard NMEA data.

The W2K-2 has adopted the latest WPA3 standards for password protection. Whilst most wireless gateways still use WPA2 WPA3 adds an extra layer of security.

Actisense-i comes included as standard. Benefit from our full suite of diagnostic tools to help check and diagnose potential issues on a boat’s electronics network including voltage issues and the working status of all devices attached to the network Actisense-i has been designed to save installers and boaters time and ultimately money by giving them confidence in their electronics onboard.

The W2K-2 has the legendary Actisense “Reliability Built-In” along with useful diagnostic LEDs internal antenna enhanced password security full certification and all packaged in an extremely rugged IP67 case.

Benefits

• Two-in-one NMEA 2000 to Wi-Fi Gateway and data logger
• Enables use of mobile devices and laptops without the hassle of a physical connection
• Allows compatibility with a wide range of NMEA 2000 & NMEA 0183 applications
• Ruggedised IP67 casing suitable for wet and harsh environments
• Works out of the box – just install your choice of SD card for logging data
• Integrated antenna has less chance of physical damage
• Quick and easy to install
