• Dimensions: 167.6 x 190.5 x 264.16mm
• Weight: 7.5 kg
• Temperature range: -15°C to 55°C
• Material: Electronics Control Unit (ECU) – fully gasketed, aluminium alloy; bracket – carbon steel; manifold – aluminium alloy; motor – aluminium alloy
• Power cable length: 2.7 m
• Power input: 10-30 Vdc
• Fuse: 40 A, blade-type
• Main power usage: Standby – less than 1 A; engaged – 5-10 A; peak – 34 A
• Flow rate: Configurable from 0 to 2.4 L per minute
• Compatible with steering cylinder sizes from 4-24 cu in; 7 second lock to lock up to 17 cu in

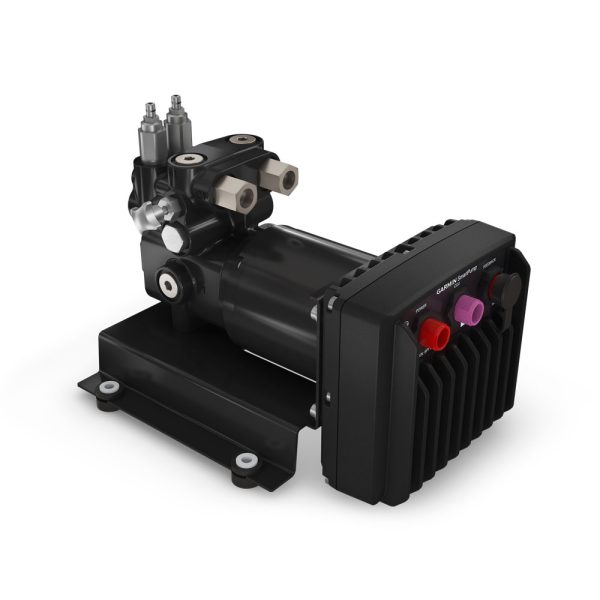

Put an end to guessing which pump size will work with your any boat. One SmartPump v2 works for most hydraulically steered boats and applications. For optimum control and confidence, you know you have the right pump for any boat. Plus, get complete control in a smaller size with better thermal performance, higher reliability and lower power consumption. It also includes colour-coded connectors to make it very easy to install.

The SmartPump v2 features reduced overall size and weight from the previous version while maintaining corrosion-resistant components, including black dye on aluminium parts and nickel-plating on all steel parts.
