• Dimensions (W×H×D): 54.3 x 124.1 x 81.2 mm
• Weight: 178.6 g
• Temperature range: From -15° to 70°C
• Material: Fully gasketed, high-impact plastic, waterproof to IPX7 standards
• Input power: 10-35 Vdc
• Fuse: 7.5 A, 42 V fast-acting
• Maximum power usage at 10 Vdc: 2.4 W
• Typical current draw at 12 Vdc: 80 mA
• Maximum current draw at 12 Vdc: 240 mA
• Compass-safe distance: 915 mm (36″)

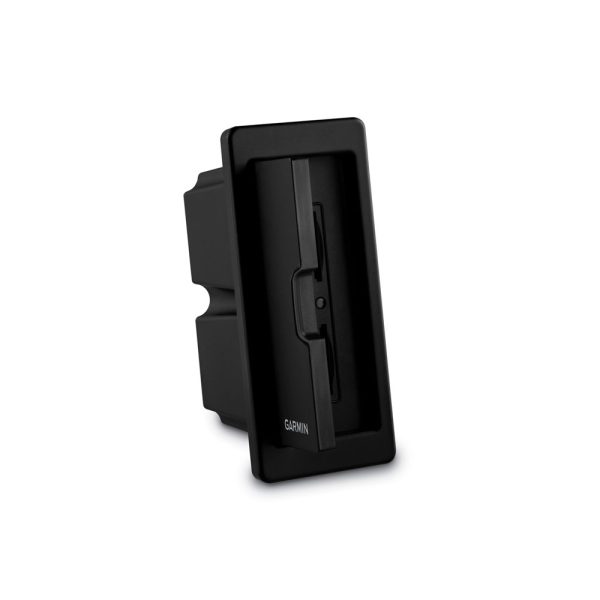

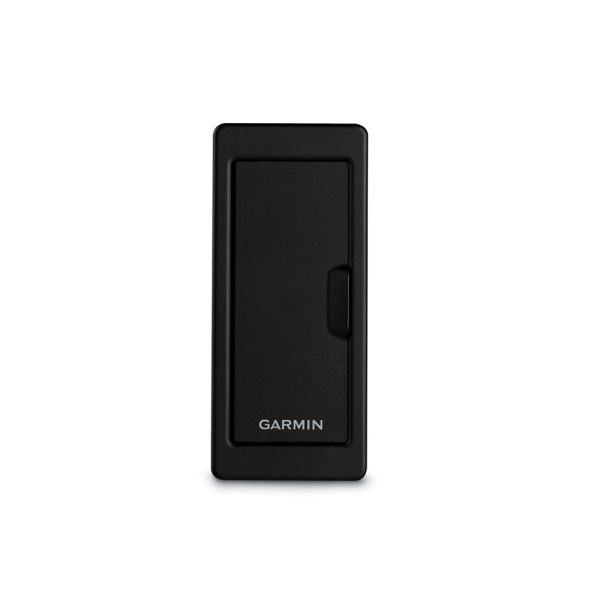

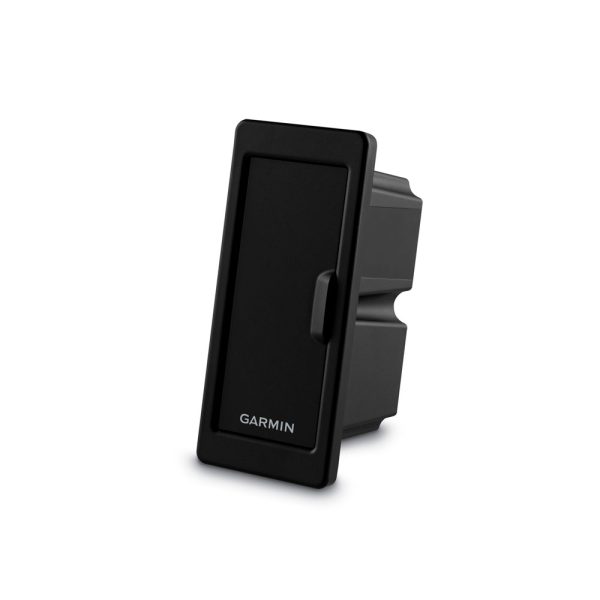

Provide convenient remote mounting and a single access point for 2 SD™ card slots for mapping with our Garmin Card Reader. A water resistant, magnetic door allows the card reader to be mounted horizontally or vertically — and you can add multiple card readers for additional access points.

In The Box

• Garmin Card Reader
• Mounting hardware
• Power cable
• Network cable 1.82m (6 ft)
• Documentation

Compatible Devices

GPSMAP® 8008 MFD , GPSMAP® 8012 MFD, GPSMAP® 8015 MFD, GPSMAP® 8410, GPSMAP® 8410xsv, GPSMAP® 8412, GPSMAP® 8412xsv, GPSMAP® 8416, GPSMAP® 8416xsv, GPSMAP® 8417 MFD, GPSMAP® 8422 MFD, GPSMAP® 8424 MFD, GPSMAP® 8500 Black Box, GPSMAP® 8530 Black Box, GPSMAP® 8700 Black Box, Volvo Penta Glass Cockpit System.
