• 12/24V
• 15W Charger
• IPX6 Waterproof
• Qi compatible
• Input Voltage Range: 10-30V DC (12/24V system)
• Three overlapping charging coils maximize performance
• Top install or flush installation options
• Reverse polarity protection
• No alignment is needed, throw the phone into the charger and the phone will always charge!
• Uninterrupted charging during outdoor adventures

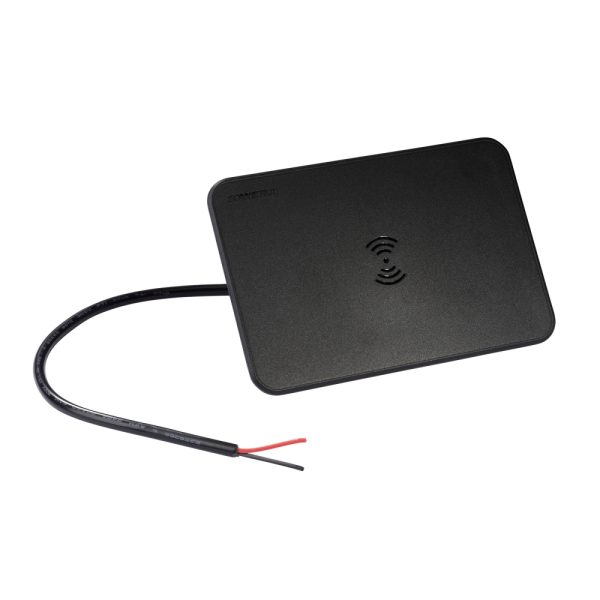

• Rear installation light, for testing power & correct wiring.
• Simple one-cut installation
• Foreign object detection
• 5-year warranty

<a class=”pagebuilder-button-primary” href=”https://app.box.com/s/7afhsf3u23kpcaxnecpije3tr1kyey5j” target=”_blank” style=”text-align: center; font-weight: normal;”> <i class=”fas fa-file-alt”></i> <span data-element=”link_text” style=”font-weight: 600;”> Datasheet</span> </a> <a class=”pagebuilder-button-primary” href=”https://app.box.com/s/jvr3n79sy0zov8ud99uwdn8q4f68k4ho” target=”_blank” style=”text-align: center; font-weight: normal;”> <i class=”fas fa-map”></i> <span data-element=”link_text” style=”font-weight: 600;”> Brochure</span> </a> <a class=”pagebuilder-button-primary” href=”https://app.box.com/s/f0gncauspn8t7d9ej9wlh1k6hssnvzjk” target=”_blank” style=”text-align: center; font-weight: normal;”> <i class=”fas fa-wrench”></i> <span data-element=”link_text” style=”font-weight: 600;”> Installation</span> </a>

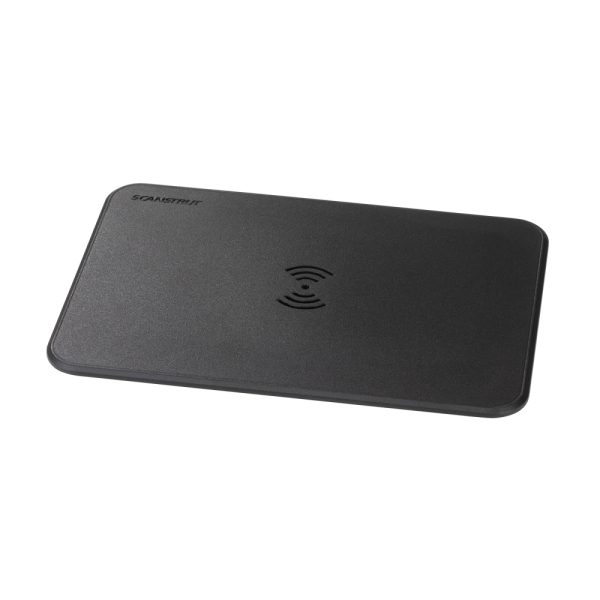

The pioneering three-coil sub-charger is designed to revolutionize the charging experience. Sunk into any surface with foam overlay on top or installed on top of the surface, the sub offers unparalleled ease of use whilst keeping aesthetics looking flush and clean.

The charger’s innovative three-coil design is a game-changer for outdoor waterproof charging. Three overlapping charging coils maximize performance, ensuring reliable charging from various phone placements. The intelligent electronics ensure optimal charging by selecting the best coil based on the phone’s location.

The built-in heat management system also adjusts charging speed based on ambient and phone temperature. This charger is tailored for those seeking uninterrupted charging during outdoor adventures, offering a reliable and efficient solution for powering devices on the go.

Intelligent charging – Even when at sea or driving over rough terrain, the intelligent charging features are designed to mirror the movement of the phone, to ensure a constant charge, no matter the adventure or the placement of the phone on the charger.

Three-coil system – With a three-coil system that overlaps, there is NO DEAD SPACE, resulting in the most efficient & most amount of power regardless of the phone’s position.

Hot climates – No problem. With a larger cavity and the electronics designed for thermal management by efficiently dissipating heat, this charger will perform better than other chargers in 30°C (86°F). It will also monitor the phone’s heat, adjusting the power output to ensure it does not overheat, helping prolong the health of the phone!

LED light system – The rear visible LED on the back of the charger acts as a rear installation light, a visible check to ensure the charger is powered and ready to charge.

Installation – The sub can be installed in two different methods. For an ultra-clean look, install the Sub in a recess of a chosen counter and apply a sea deck over the top to show placement and for added grip to hold the phone. Or, to show off the Scanstrut Aesthetic for a minimal, block colour look. Install the Sub on top of a counter; however, this does not have any grip to hold the phone in place.
