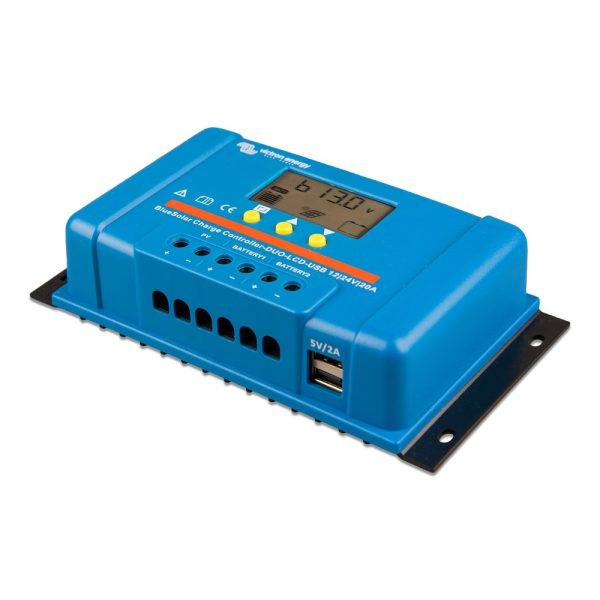

Victron BlueSolar PWM LCD & USB 12/24V – 20A
£39.60
The BlueSolar Charge Controller series uses Pulse Width Modulation (PWM) charge voltage control combined with a multistage charge control algorithm.
Out of stock
Description
Description
- Voltage: 12/24V
- Rated Charge Current: 20A
- Protection Category: IP20
- Bluetooth Enabled: No
- Dimensions: 96 x 169 x 36mm
- Weight: 0.15Kg
- Warranty: 5 Years
Liquid crystal display
For status monitoring and set-up
Load output
Over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a pre-set voltage.
Some loads (especially inverters) can best be connected directly to the battery, and the inverter remote control connected to the load output. A special interface cable may be needed, please see the manual.
The connect and disconnect voltages are adjustable.
Day/night timing of the load output
This option allows for a pre-set ON-time after dusk.
Programmable battery charge algorithm
Preprogrammed algorithms for AGM, GEL, Flooded or LiFePO4 batteries (with internal BMS only)
Two 5 Volt USB outputs
Maximum current (both outputs combined): 2A
