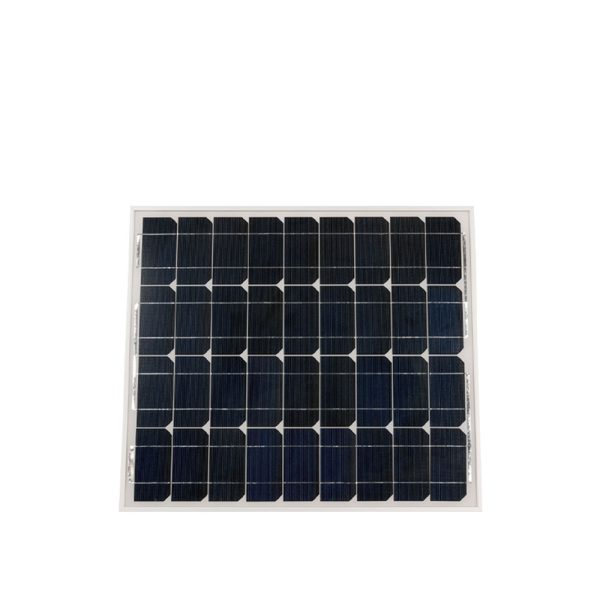

• Power: 90W
• Size: 780 x 668 x 30mm
• Weight: 6.1Kg
• Vmp (VDC): 19.6
• Imp (A): 4.59
• Voc (V): 24.06
• Isc (A): 5.03

<a class=”pagebuilder-button-primary” href=”https://www.dropbox.com/s/qrzxvtbapmkyet3/Datasheet-BlueSolar-Monocrystalline-Panels-EN.pdf?dl=0″ target=”_blank” style=”text-align: center; font-weight: normal;”> <i class=”fas fa-file-alt”></i> <span data-element=”link_text” style=”font-weight: 600;”> Datasheet</span> </a>

Low voltage-temperature coefficient enhances high-temperature operation. Exceptional low-light performance and high sensitivity to light across the entire solar spectrum.
25-Year limited warranty on power output and performance. 5-Year limited warranty on materials and workmanship.

Sealed, waterproof, multi-functional junction box gives high level of safety. High performance bypass diodes minimize the power drop caused by shade. Advanced EVA (Ethylene Vinyl Acetate) encapsulation system with triple-layer back sheet meets the most stringent safety requirements for high-voltage operation.

A sturdy, anodized aluminium frame allows modules to be easily roof-mounted with a variety of standard mounting systems. Highest quality, high-transmission tempered glass provides enhanced stiffness and impact resistance. High power models with pre-wired quick-connect system with MC4 (PV-ST01) connectors
